PRODUCT FEATURES:
1.Pixel pitch and sphere diameter can be customized

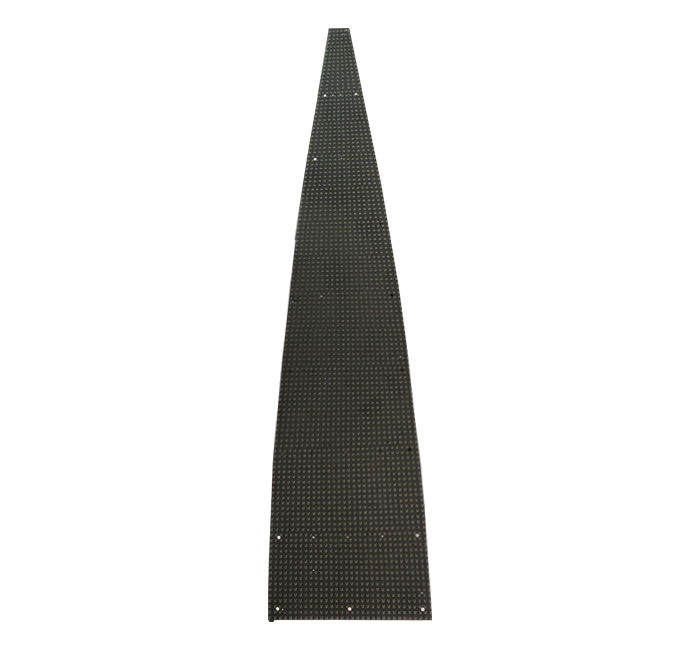

2.Adopt trapezoidal circuit design to realize seamless splicing
3.Symmetrical pixel extraction technique achieves undistorted pictures

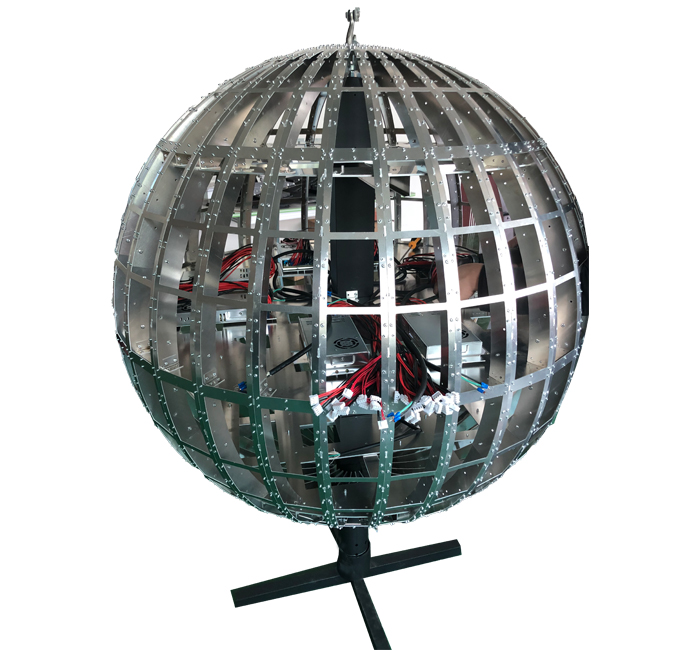

4.Adopt aluminum structural gets better heat dissipation
5 Support floor standing, suspension, embedded installation methods
TECHNICAL PARAMETERS:
| Technical Parameters | DIAMETER 1M | DIAMETER 1.5M | DIAMETER 2.2M | DIAMETER 3M |
| Pixel Pitch | 3mm | 3mm | 3mm | 3mm |
| Pixel Density | 111,111dots/m2 | 111,111dots/m2 | 111,111dots/m2 | 111,111dots/m2 |
| Pixel Configuration | 1R1G1B 3in1/SMD1515 | 1R1G1B 3in1/SMD1515 | 1R1G1B 3in1/SMD1515 | 1R1G1B 3in1/SMD1515 |
| Module Types | 4 Irregular Types | 6 Irregular Types | 8 Irregular Types | 12 Irregular Types |
| Install/Maintenance | Front/Rear Serviceable | |||
| Viewing Angle | 360°HX360°V | |||
| Grey Scale | ≥14 bit 16,384 levels | |||
| Max.Refresh Rate | ≥1920 Hz | |||
| Contrast Ratio | 4000:1 | |||
| Protection Level | IP43 | |||
| Max. Brightness | 1000-1500cd/m2,255 levels adjustable | |||
| Frame Frequency | 50/60Hz | |||
| Best Viewing Distance | 3-200m | 3-200m | 3-200m | 3-200m |
| Ave.Power Consumption | 500w/m2 | 500w/m2 | 500w/m2 | 500w/m2 |
| Max.Power Consumption | 900w/m2 | 900w/m2 | 900w/m2 | 900w/m2 |
| Display Color Qty. | 16,777,216 | |||
| Color Temperature | 2000-9500K adjustable | |||
| Working Temperature | -10℃~+60℃ | |||
| Storage Temperature | -20℃~+85℃ | |||
| Operation Humidity | 10%~90% RH | |||
| Continuous Working Time | ≥24 Hrs | |||
| MTBF | ≥5,000 Hrs | |||
| Display Lifespan | ≥100,000 Hrs | |||
| Control Distance | Ethernet:Max.100m/Multi-fiber:Max.500m/Single-fiber:Max.10KM | |||
| Flatness | Screen Surface Gap<0.5mm/Pixel Pitch Gap<0.3mm | |||
| Protection System | Overtemperature/ load/ overpower/ image compensation/ nonlinear correction | |||
| Control Mode | Synchronous Control with DVI interface | |||
| Display Media | Text/ Animation/ Graphic/ Video and so on | |||
| Signal Source | Composite/ S-video/ Compent/ VGA/ DVI/ HDMI/ HD-SDI | |||
| System Operating Platform | Windows98/2000/XP/7/8/10 | |||
| Warranty Period | 2 Years | |||
| Technical Parameters | DIAMETER 1M | DIAMETER 1.5M | DIAMETER 2.2M | DIAMETER 3M |
| Pixel Pitch | 4mm | 4mm | 4mm | 4mm |
| Pixel Density | 62,500dots/m2 | 62,500dots/m2 | 62,500dots/m2 | 62,500dots/m2 |
| Pixel Configuration | 1R1G1B 3in1/SMD2121 | 1R1G1B 3in1/SMD2121 | 1R1G1B 3in1/SMD2121 | 1R1G1B 3in1/SMD2121 |
| Module Types | 4 Irregular Types | 6 Irregular Types | 8 Irregular Types | 12 Irregular Types |
| Install/Maintenance | Front/Rear Serviceable | |||
| Viewing Angle | 360°HX360°V | |||
| Grey Scale | ≥14 bit 16,384 levels | |||
| Max.Refresh Rate | ≥1920 Hz | |||
| Contrast Ratio | 4000:1 | |||
| Protection Level | IP43 | |||
| Max. Brightness | 800-1200cd/m2,255 levels adjustable | |||
| Frame Frequency | 50/60Hz | |||
| Best Viewing Distance | 4-200m | 4-200m | 4-200m | 4-200m |
| Ave.Power Consumption | 400w/m2 | 400w/m2 | 500w/m2 | 500w/m2 |
| Max.Power Consumption | 800w/m2 | 800w/m2 | 900w/m2 | 900w/m2 |
| Display Color Qty. | 16,777,216 | |||
| Color Temperature | 2000-9500K adjustable | |||
| Working Temperature | -10℃~+60℃ | |||
| Storage Temperature | -20℃~+85℃ | |||
| Operation Humidity | 10%~90% RH | |||
| Continuous Working Time | ≥24 Hrs | |||
| MTBF | ≥5,000 Hrs | |||
| Display Lifespan | ≥100,000 Hrs | |||
| Control Distance | Ethernet:Max.100m/Multi-fiber:Max.500m/Single-fiber:Max.10KM | |||
| Flatness | Screen Surface Gap<0.5mm/Pixel Pitch Gap<0.3mm | |||
| Protection System | Overtemperature/overload/ overpower/ image compensation /nonlinear correction | |||
| Control Mode | Synchronous Control with DVI interface | |||
| Display Media | Text/ Animation/ Graphic/ Video and so on | |||
| Signal Source | Composite/ S-video/ Compent/ VGA/ DVI/ HDMI/ HD-SDI | |||
| System Operating Platform | Windows98/2000/XP/7/8/10 | |||
| Warranty Period | 2 Years | |||
