PRODUCT FEATURES:
1.Highly cost effective
2.IP65 & high brightness models available
3.HD video performance
4.Quick set-up and take-down
5.Arc-shaped with +/-15 available in custom types
APPLICATION SCOPES:

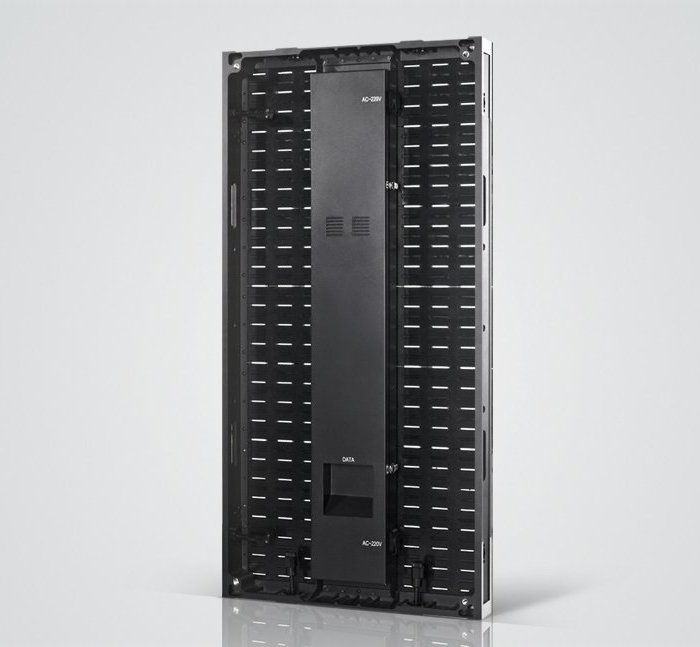

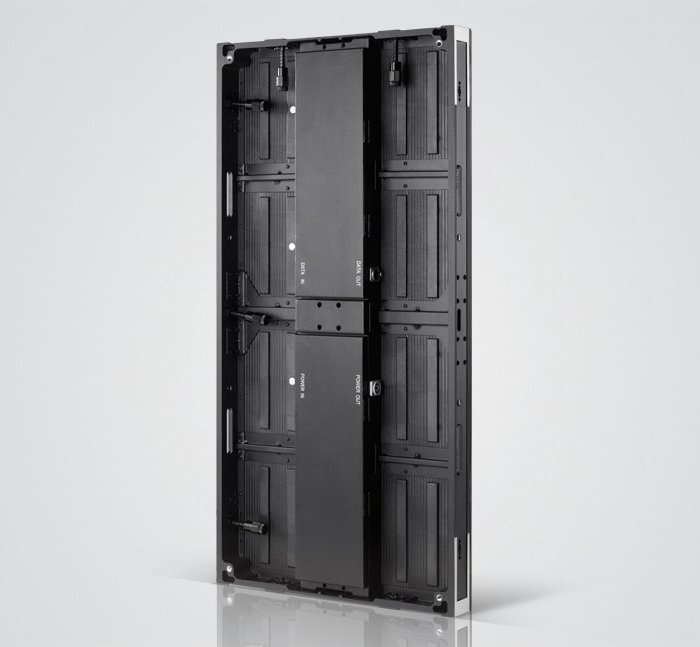

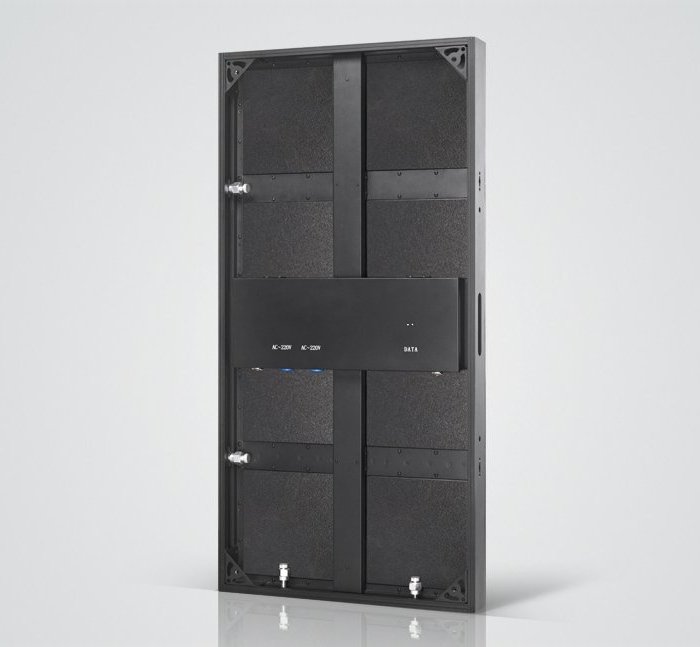

Rectangle series LED screens have a slim type cabinet construction which makes the installation, operation and technical maintenance much easier. Furthermore, it does not need cooling system, it operates without making any noise and uses very little energy. Cabinet frame has a special constructive element to ensure convenience and accuracy of assembling of the screen: guide pins and holes, the system of inter cabinet binding. These screens can be used to broadcast videos of any format by achieving extremely high image quality. It offers maximum efficient communication of advertising messages or any other important information inside a building on LED displays of the size of your choice.
TECHNICAL PARAMETERS:
| Technical Parameters | RECTANGLE 3.9 | RECTANGLE 4.8 | RECTANGLE 5.2 | RECTANGLE 6.9 |
| Pixel Pitch | 3.9 mm | 4.8 mm | 5.2 mm | 6.944 mm |
| Pixel Density | 65,536 dots/m2 | 43,264 dots/m2 | 36,864 dots/m2 | 20,736 dots/m2 |
| Pixel Configuration | 1R1G1B 3in1/SMD2121 | 1R1G1B 3in1/SMD3528 | 1R1G1B 3in1/SMD3528 | 1R1G1B 3in1/SMD3528 |
| Module Size | 250x250mm | |||
| Standard Cabinet Size | 500x1000mm | |||
| Standard Cabinet Weight | 12 KG | |||
| Viewing Angle | 140°HX140°V | |||
| Grey Scale | ≥14 bit 16,384 levels | |||
| Max.Refresh Rate | ≥3840 Hz | ≥1920 Hz | ||
| Contrast Ratio | 4000:1 | |||
| Protection Level | IP43 | |||
| Brightness | 900-1100cd | 900-1100cd | 900-1100cd | 1100-1300cd |
| Frame Frequency | 50/60Hz | |||
| Scan Method | 1/16 dynamic | 1/13 dynamic | 1/8 dynamic | 1/9 dynamic |
| Best Viewing Distance | 3-200m | 4-200m | 5-200m | 6-200m |
| Ave.Power Consumption | 260w/m2 | 250w/m2 | 340w/m2 | 250w/m2 |
| Max.Power Consumption | 500w/m2 | 500w/m2 | 650w/m2 | 500w/m2 |
| Display Color Qty. | 16,777,216 | |||
| Color Temperature | 2000-9500K adjustable | |||
| Working Temperature | -10℃~+60℃ | |||
| Storage Temperature | -20℃~+85℃ | |||
| Operation Humidity | 10%~90% RH | |||
| Continuous Working Time | ≥24 Hrs | |||
| MTBF | ≥5,000 Hrs | |||
| Display Lifespan | ≥100,000 Hrs | |||
| Control Distance | Ethernet:Max.100m/Multi-fiber:Max.500m/Single-fiber:Max.10KM | |||
| Flatness | Screen Surface Gap<0.5mm/Pixel Pitch Gap<0.3mm | |||
| Protection System | Overtemperature/ overload/ overpower/ image compensation/ nonlinear correction | |||
| Control Mode | Synchronous Control with DVI interface | |||
| Display Media | Text/ Animation/ Graphic/ Video and so on | |||
| Signal Source | Composite/ S-video/ Compent/ VGA/ DVI/ HDMI/ HD-SDI | |||
| System Operating Platform | Windows98/2000/XP/7/8/10 | |||
| Warranty Period | 2 Years | |||
