PRODUCT FEATURES:
1. Our classic rental display with multiple specs meet the needs of various events. Widely used in TV station, concert, entertainment show, supermarket, shopping mall, wedding ceremony, and so on.
2. We adopt die-casting aluminum for our classic rental display products, which are durable and include many types satisfying different rental activities.

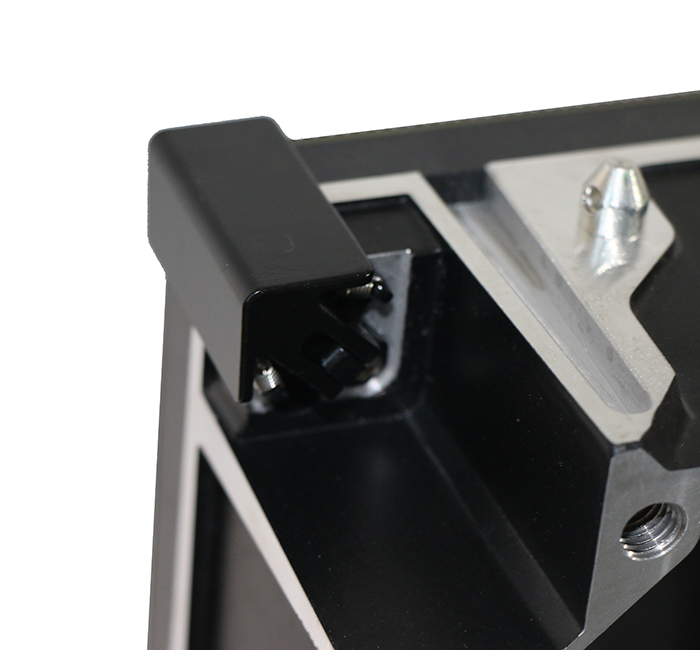

3. Cabinets are die-casting aluminum alloy and CNC high-precision processing, which realize the precision of +/-0.05mm and seamless connection.
4. It is no need to dismantle all parts to maintain the screen. Each component can be dismantled and maintained independently.
5. Low current and switching power suppliers with PFC save more than 15% of energy whose saving saves money.
6. Aluminum alloy structure allows heat dissipation without fans. Accompanied with advanced zero noise power suppliers, the whole screen works without noise
7. Each die-casted cabinet only weighs 8.5kg and it is convenient for installation, dismantling and transportation.
8. Pictures are fine and clean without ghost images. Upstream ghost images and downstream ghost images are automatically removed.
TECHNICAL PARAMETERS:
| Technical Parameters | MAGIC 1.95 | MAGIC 2.604 | MAGIC 2.976 | MAGIC 3.91 |
| Pixel Pitch | 1.95 mm | 2.604mm | 2.976mm | 3.91mm |
| Pixel Density | 262,144dots/m2 | 147,456dots/m2 | 112,896dots/m2 | 65,536dots/m2 |
| Pixel Configuration | 1R1G1B 3IN1/SMD1515 | 1R1G1B 3IN1/SMD2020 | 1R1G1B 3IN1/SMD2020 | 1R1G1B 3IN1/SMD2121 |
| Module Size | 250x250mm | |||
| Standard Cabinet Size | 500x500mm | |||
| Standard Cabinet Weight | 8.5KG | |||
| Viewing Angle | 140°HX140°V | |||
| Grey Scale | ≥14 bit 16,384 levels | |||
| Max.Refresh Rate | ≥3840 Hz | ≥1920 Hz | ||
| Contrast Ratio | 4000:1 | |||
| Protection Level | IP41 | |||
| Max. Brightness | 800-1100cd | 800-1100cd | 800-1100cd | 800-1100cd |
| Frame Frequency | 50/60Hz | |||
| Scan Method | 1/32 dynamic | 1/32 dynamic | 1/28 dynamic | 1/16 dynamic |
| Best Viewing Distance | 1-150m | 2-150m | 2-150m | 3-200m |
| Ave.Power Consumption | 300w/m2 | 300w/m2 | 250w/m2 | 300w/m2 |
| Max.Power Consumption | 800w/m2 | 800w/m2 | 500w/m2 | 600w/m2 |
| Display Color Qty. | 16,777,216 | |||
| Color Temperature | 2000-9500K adjustable | |||
| Working Temperature | -10℃~+60℃ | |||
| Storage Temperature | -20℃~+85℃ | |||
| Operation Humidity | 10%~90% RH | |||
| Continuous Work Time | ≥24 Hrs | |||
| MTBF | ≥5,000 Hrs | |||
| Display Lifespan | ≥100,000 Hrs | |||
| Control Distance | Ethernet:Max.100m/Multi-fiber:Max.500m/Single-fiber:Max.10KM | |||
| Flatness | Screen Surface Gap<0.5mm/Pixel Pitch Gap<0.3mm | |||
| Protection System | Overtemperature /load /overpower /image compensation /nonlinear correction | |||
| Control Mode | Synchronous Control with DVI interface | |||
| Display Media | Text/ Animation/ Graphic/ Video and so on | |||
| Signal Source | Composite/ S-video/ Compent/ VGA/ DVI/ HDMI/ HD-SDI | |||
| System Operating Platform | Windows98/2000/XP/7/8/10 | |||
| Warranty Period | 2 Years | |||
| Technical Parameters | Outdoor MAGIC 3.91 | Outdoor MAGIC 4.81 |
| Pixel Pitch | 3.91 mm | 4.81 mm |
| Pixel Density | 65,536dots/m2 | 43,264dots/m2 |
| Pixel Configuration | 1R1G1B 3in1/SMD1921 | 1R1G1B 3in1/SMD1921 |
| Module Size | 250x250mm | |
| Standard Cabinet Size | 500x500mm | |
| Standard Cabinet Weight | 8.5KG | |
| Viewing Angle | 140°HX140°V | |
| Grey Scale | ≥14 bit 16,384 levels | |
| Max.Refresh Rate | ≥1920 Hz | |
| Contrast Ratio | 4000:1 | |
| Protection Level | IP65 | |
| Max.Brightness | >3500cd adjustable | >3500cd adjustable |
| Frame Frequency | 50/60Hz | |
| Scan Method | 1/16 dynamic scanning | 1/13 dynamic scanning |
| Best Viewing Distance | 3-200m | 4-200m |
| Ave.Power Consumption | 400w/m2 | 300w/m2 |
| Max.Power Consumption | 800w/m2 | 800w/m2 |
| Display Color Qty. | 16,777,216 | |
| Color Temperature | 2000-9500K adjustable | |
| Working Temperature | -10℃~+60℃ | |
| Storage Temperature | -20℃~+85℃ | |
| Operation Humidity | 10%~90% RH | |
| Continuous Working Time | ≥24 Hrs | |
| MTBF | ≥5,000 Hrs | |
| Display Lifespan | ≥100,000 Hrs | |
| Control Distance | Ethernet:Max.100m/Multi-fiber:Max.500m/Single-fiber:Max.10KM | |
| Flatness | Screen Surface Gap<0.5mm/Pixel Pitch Gap<0.3mm | |
| Protection System | Overtemperature/ load/ overpower/ image compensation/ nonlinear correction | |
| Control Mode | Synchronous Control with DVI interface | |
| Display Media | Text/ Animation/ Graphic/ Video and so on | |
| Singal Source | Composite/ S-video/ Compent/ VGA/ DVI/ HDMI/ HD-SDI | |
| System Operating Platform | Windows98/2000/XP/7/8/10 | |
| Warranty Period | 2 Years | |
