Main Features:

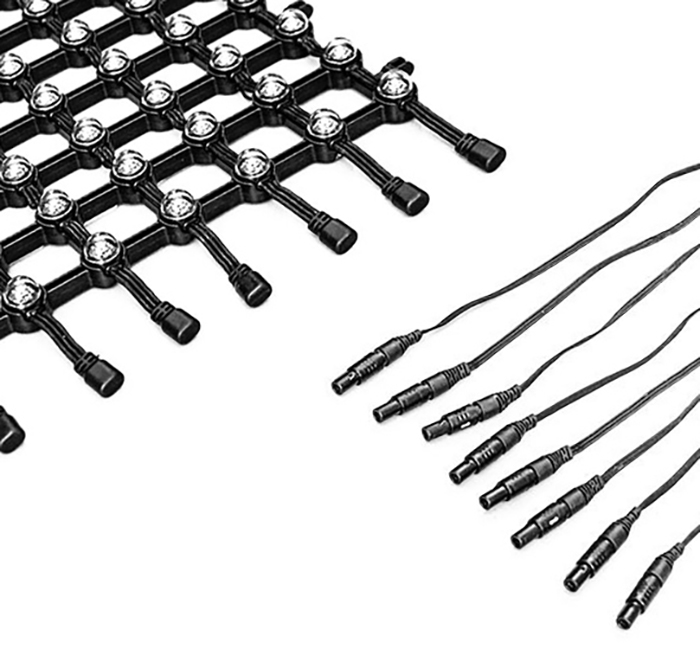

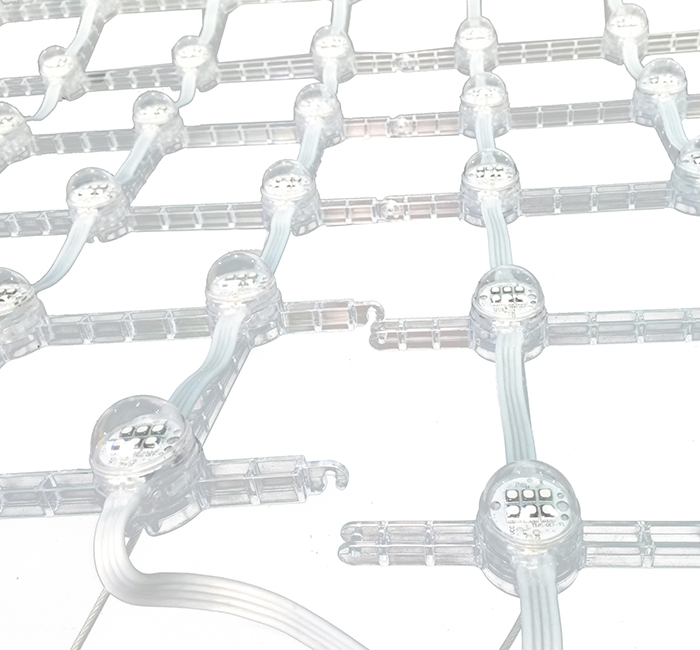

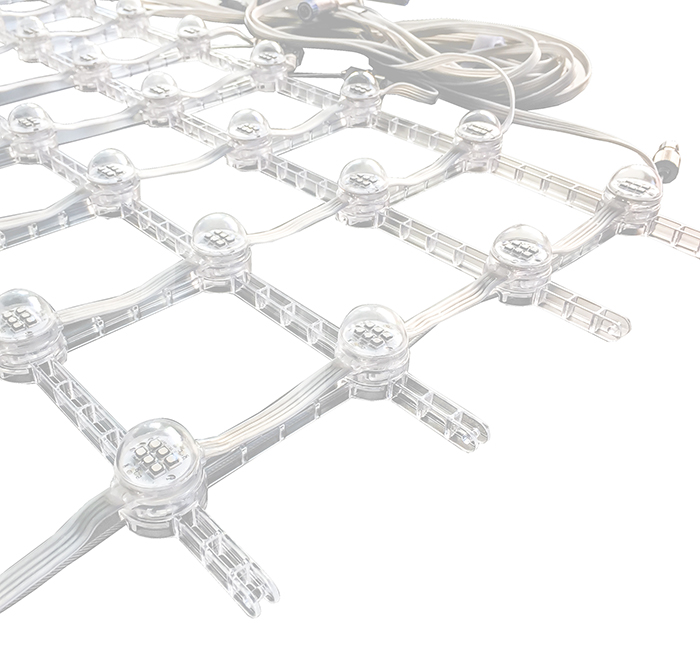

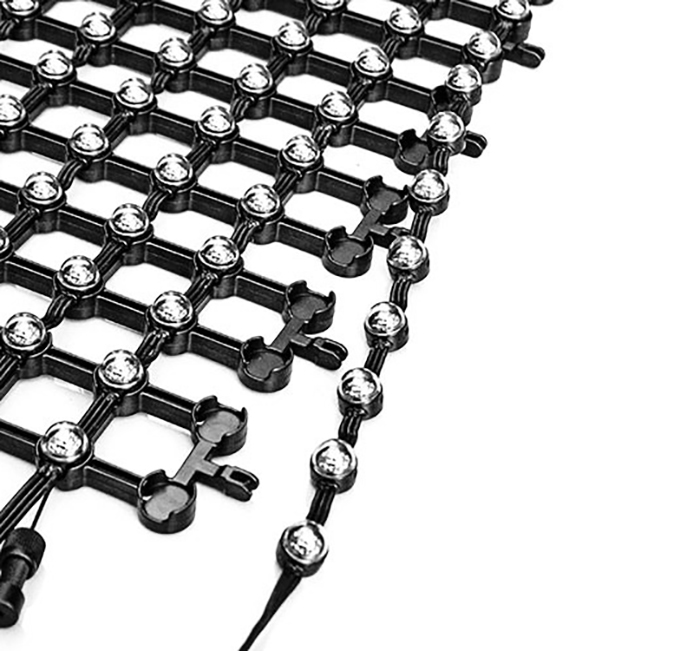

Flexible DOT is the most attractive indoor and outdoor full color soft led screen. Its unique flexible structure enable panel can be curved, folded, rolled or hung up to form versatile shapes.it can be assembled into various of applications, such as stage backdrop, ceiling, club decoration and other entertainment applications.
Flexible DOT is a kind of full color soft LED screen. Highly artistry and creativity can be assembled into various of applications, such as stage background, club decoration, innovative design etc.
1.High transparency and stability
2.Customized pixel pitch, flexible structure

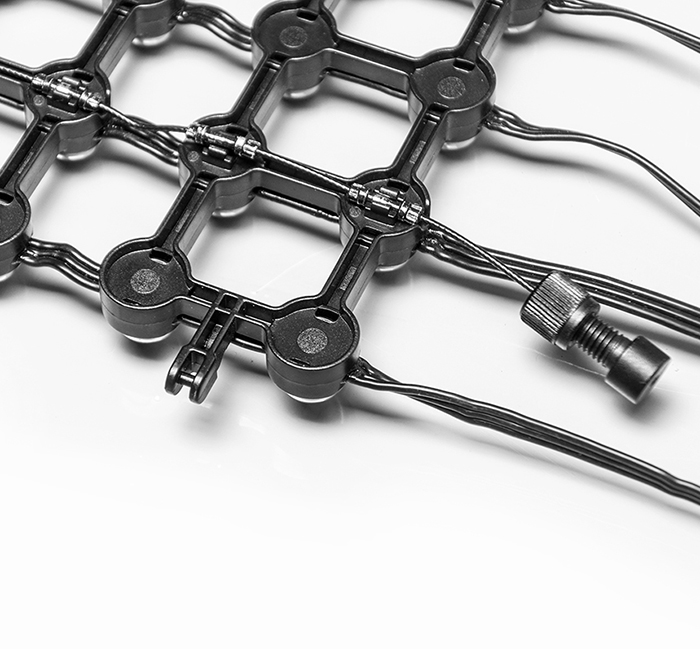

3.Magnetic buckle, fast installation and dismantle

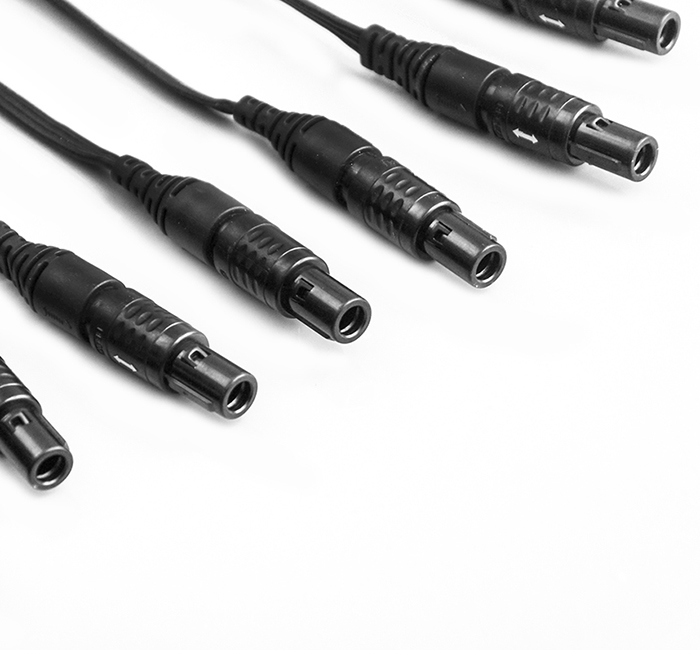

4.Modular large panel and fast connection design make installation easy and fast

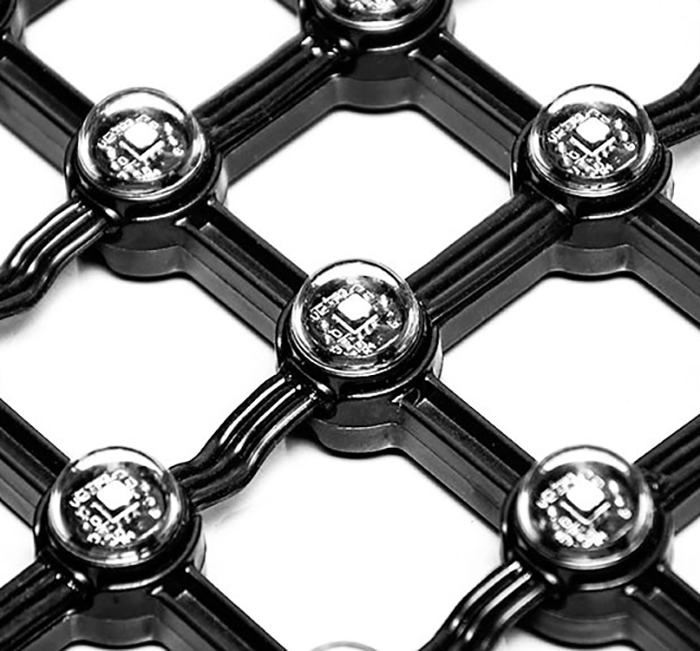

5.Spherical mask with double injection molding; IP66, suitable for indoor and outdoor applications
Technical Parameters:
| Technical Parameters | DOT1 35 | DOT1 55 | DOT1 80 | DOT1 100 |
| Pixel Pitch | 35mm | 55mm | 80mm | 100mm |
| Pixel Density | 816dots/m2 | 330dots/m2 | 156dots/m2 | 100dots/m2 |
| Pixel Configuration | 1R1G1B 3in1/SMD3535 | |||
| Pixel Size | 18X18X10.5mm | |||
| Standard Module Size | 280X2240mm | 440X3520mm | 640X5120mm | 800X6400mm |
| Standard Module Weight | 4-5kg | |||
| Viewing Angle | 120°HX120°V | |||
| Grey Scale | ≥14 bit 16,384 levels | |||
| Max.Refresh Rate | ≥1440 Hz | |||
| Contrast Ratio | 3000:1 | |||
| Protection Level | IP65 | |||
| Max. Brightness | 2200cd adjustable | 900cd adjustable | 420cd adjustable | 300cd adjustable |
| Frame Frequency | 50/60Hz | |||
| Scan Method | static scanning | |||
| Best Viewing Distance | 35-200m | 55-200m | 80-200m | 100-200m |
| Ave.Power Consumption | 200w/m2 | 75w/m2 | 30w/m2 | 25w/m2 |
| Max.Power Consumption | 350w/m2 | 150w/m2 | 70w/m2 | 50w/m2 |
| Display Color Qty. | 16,777,216 | |||
| Color Temperature | 2000-9500K adjustable | |||
| Working Temperature | -10℃~+60℃ | |||
| Storage Temperature | -20℃~+85℃ | |||
| Operation Humidity | 10%~90% RH | |||
| Continuous Working Time | ≥24 Hrs | |||
| MTBF | ≥5,000 Hrs | |||
| Display Lifespan | ≥100,000 Hrs | |||
| Control Distance | Ethernet:Max.100m/Multi-fiber:Max.500m/Single-fiber:Max.10KM | |||
| Flatness | Screen Surface Gap<0.5mm/Pixel Pitch Gap<0.3mm | |||
| Protection System | Overtemperature/ overload/ overpower/ image compensation/ nonlinear correction | |||
| Control Mode | Synchronous Control with DVI interface | |||
| Display Media | Text/ Animation/ Graphic/ Video and so on | |||
| Signal Source | Composite/ S-video/ Compent/ VGA/ DVI/ HDMI/ HD-SDI | |||
| System Operating Platform | Windows98/2000/XP/7/8/10 | |||
| Warranty Period | 2 Years | |||
