PRODUCT FEATURES:

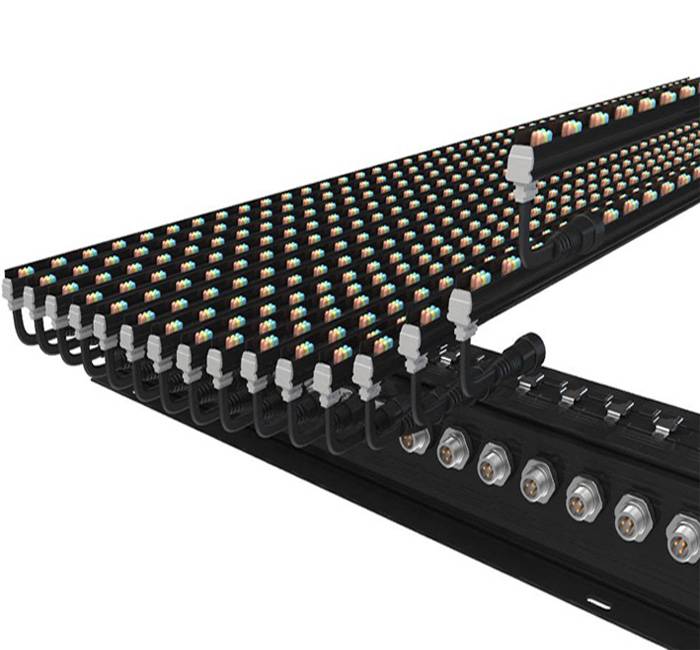

1. Quick and easy installation; die-casting aluminum panel, flexible installation.
2. Safe and convenient maintenance: modularized power and signal unit, could be installed and maintained from front or rear of the screen.
3. Lightweight: less than 18kg per square meter, minimize the loading impact on buildings, one person could finish the installation and dismantle, cost-saving for installation and transportation.

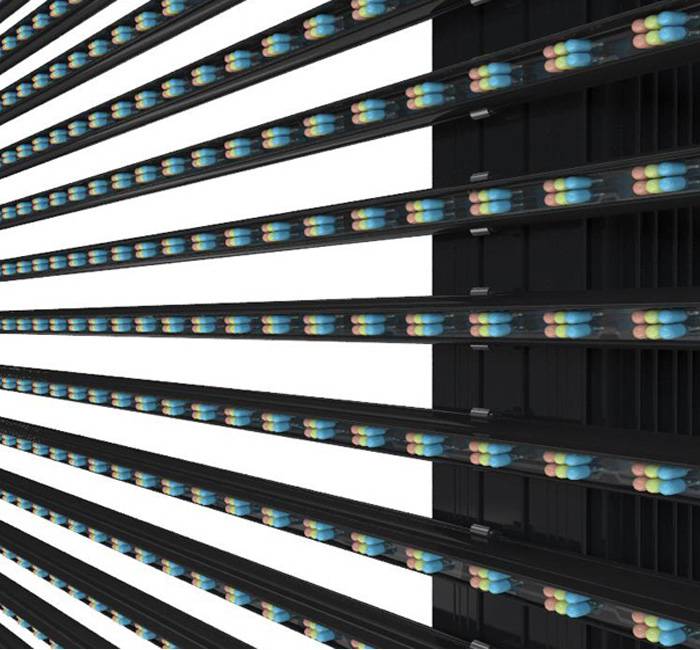

4. High transparency: LED strip designs ensure minimum weight and over 60% transparency, highly wind-resistance, less impact for inside lighting conditions of the building.
5. Ultra slim: the thinnest part is less than 23mm, which enable the screen attached closely to buildings, not affect the building’s overall style.
6. IP65 rating:high reliable connectors applied, satisfy outdoor application needs.
TECHNICAL PARAMETERS:
| Technical Parameters | MESH 25 | MESH 31.25 | MESH50 |
| Pixel Pitch | 25mm | 31.25mm | 50mm |
| Pixel Density | 1,600dots/m2 | 1,024dots/m2 | 400dots/m2 |
| Pixel Configuration | 1R1G1B 3in1/SMD3535 | 1R1G1B 3in1/SMD3535 | 1R1G1B 3in1/SMD3535 |
| Standard Cabinet Size | 600x1200mm | 1500x1000mm | 600x1200mm |
| Standard Cabinet Weight | 13 KG/PCS | 18 KG/PCS | 7 KG/PCS |
| Transparency | 50% | 58% | 75% |
| Viewing Angle | 120°HX120°V | ||
| Grey Scale | ≥12 bit 16,384 levels | ||
| Max.Refresh Rate | ≥4320 Hz | ||
| Contrast Ratio | 3000:1 | ||
| Protection Level | ≥IP65 | ||
| Max.Brightness | 6000cd/m2 | 7000cd/m2 | 2000cd/m2 |
| Frame Frequency | 50/60Hz | ||
| Scan Method | static scanning | static scanning | static scanning |
| Best Viewing Distance | 25-500m | 30-600m | 50-800m |
| Ave.Power Consumption | 300w/m2 | 200w/m2 | 100w/m2 |
| Max.Power Consumption | 500w/m2 | 300w/m2 | 200w/m2 |
| Display Color Qty. | 16,777,216 | ||
| Color Temperature | 2000-9500K adjustable | ||
| Working Temperature | -10℃~+60℃ | ||
| Storage Temperature | -20℃~+85℃ | ||
| Operation Humidity | 10%~90% RH | ||
| Continuous Working Time | ≥24 Hrs | ||
| MTBF | ≥5,000 Hrs | ||
| Display Lifespan | ≥100,000 Hrs | ||
| Control Distance | Ethernet:Max.100m/Multi-fiber:Max.500m/Single-fiber:Max.10KM | ||
| Flatness | Screen Surface Gap<0.5mm/Pixel Pitch Gap<0.3mm | ||
| Protection System | Overtemperature/ overload/ overpower/ image compensation/ nonlinear correction | ||
| Control Mode | Synchronous Control with DVI interface | ||
| Display Media | Text/ Animation/ Graphic/ Video and so on | ||
| Signal Source | Composite/ S-video/ Compent/ VGA/ DVI/ HDMI/ HD-SDI | ||
| System Operating Platform | Windows98/2000/XP/7/8/10 | ||
| Warranty Period | 2 Years | ||
